| Specifications | |
| Pixel Pitch (mm): | 6.25 / 8.33 / 10 |
| Brightness (nits): | 6500nits |
| Refresh Rate(Hz): | >3840 |
| Application: | Indoor & Outdoor LED Perimeter Board Solution |
Cinstar stadium perimeter LED display delivers stunning visuals with 6000-6500 cd/m² brightness and a 160° ultra-wide viewing angle. Its high refresh rate and 10000:1 contrast ratio ensure vibrant, flicker-free content, ideal for stadium perimeter advertising. The soft mask technology minimizes ambient light reflections, enhancing image clarity even in direct sunlight. Perfect for live sports events, this LED perimeter board captivates audiences with seamless video playback and vivid colors.
Engineered for durability, the IP65-rated LED perimeter board resists water, dust, and UV damage. The anti-collision EVA foam and silicone pads absorb impacts from high-speed balls, protecting both athletes and the display. Integrated air circuit breakers provide fault and isolation protection, preventing electrical hazards. Emergency exit pedals and fire barriers ensure rapid evacuation and flame containment, prioritizing safety in crowded stadiums.
With 90°–180° adjustable, Cinstar stadium perimeter LED display adapts seamlessly to curved or corner installations. Foldable supports and hidden cable trunking enable quick setup while maintaining a sleek appearance. The raised base prevents ground debris damage, and expansion screws ensure stability. The great flexibility makes it ideal for dynamic stadium layouts.

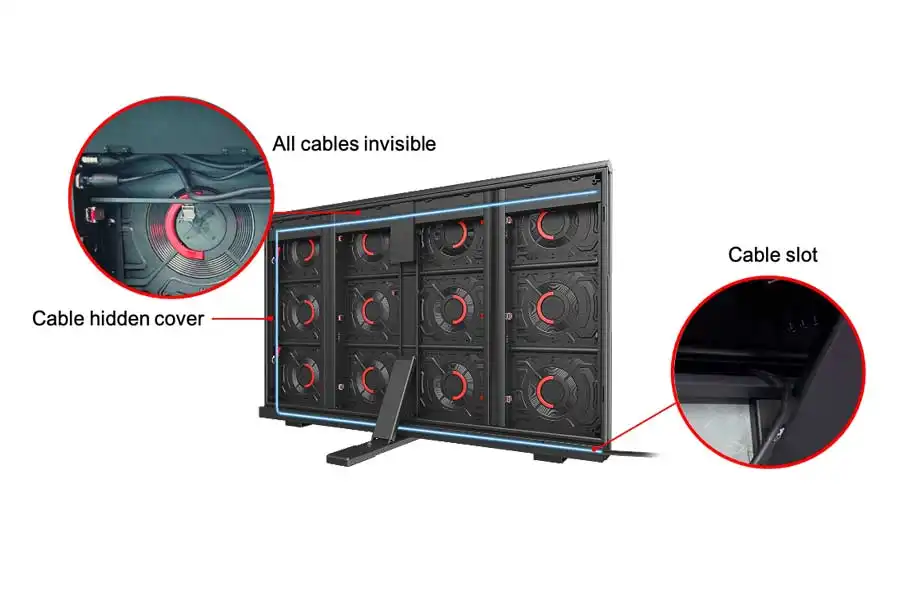

The hidden cable box and trunking system eliminate tripping hazards and protect cables from wear, moisture, and temperature changes. This streamlined design enhances the stadium’s aesthetics while ensuring reliable signal transmission. The stainless steel buckles and modular handles further contribute to a clean, professional look for stadium perimeter advertising.
Front/rear maintenance access simplifies maintenance without disrupting adjacent screens. With static scan technology and low average power consumption (200–300 W/m²), Cinstar XD LED perimeter display board reduces operational costs. Optional signal/power backups ensure uninterrupted performance, critical for high-stakes sports environments.
Designed for indoor and outdoor stadium arenas, Cinstar LED perimeter display board supports pixel pitches like P6.25, P8 and P10 for wide budget options. Its aluminum construction and wide operating temperature range (-20°C to 60°C) make it suitable for all-weather climates. Whether for live scores, ads, or replays, this display enhances fan engagement with crisp, dynamic content.

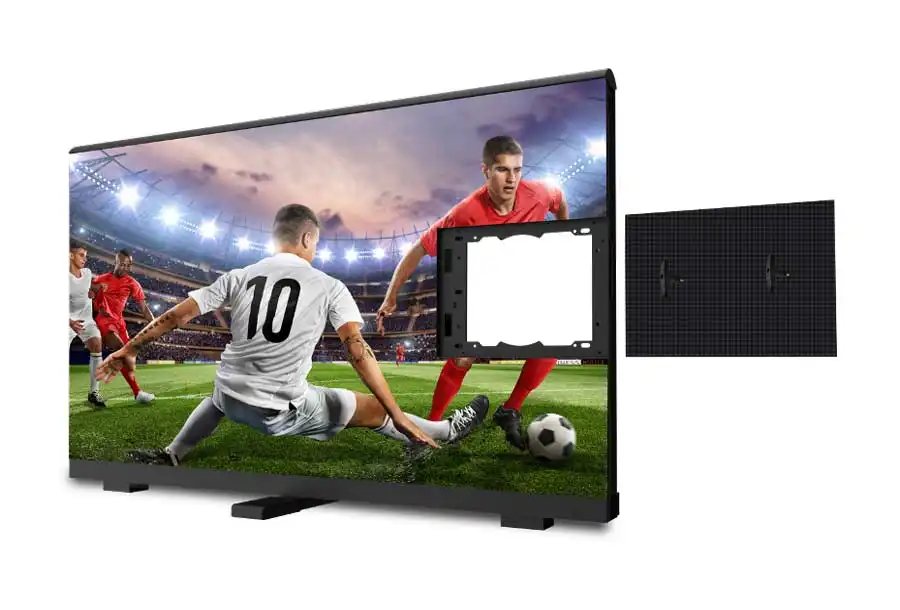

Front & rear service LED perimeter display

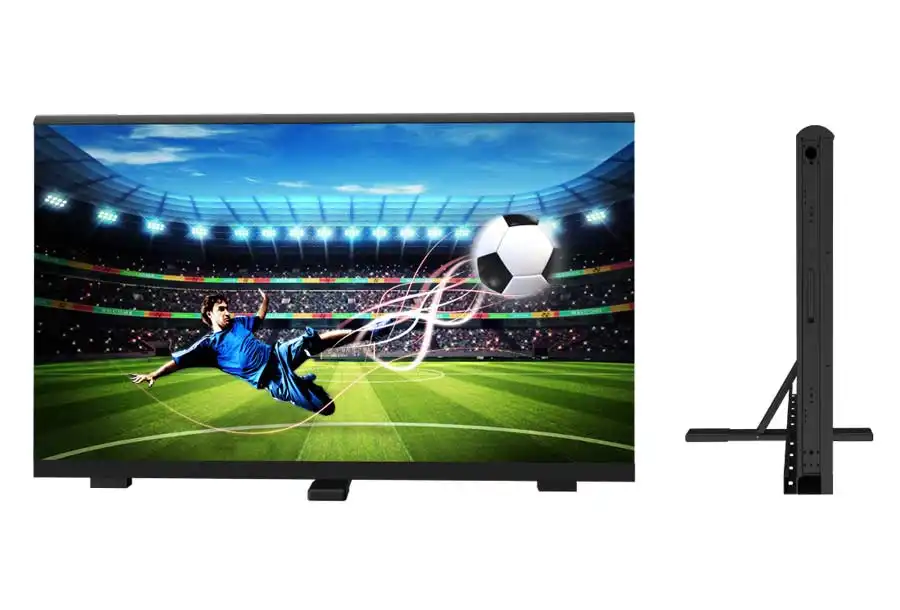

Sleek and concise perimeter panel design

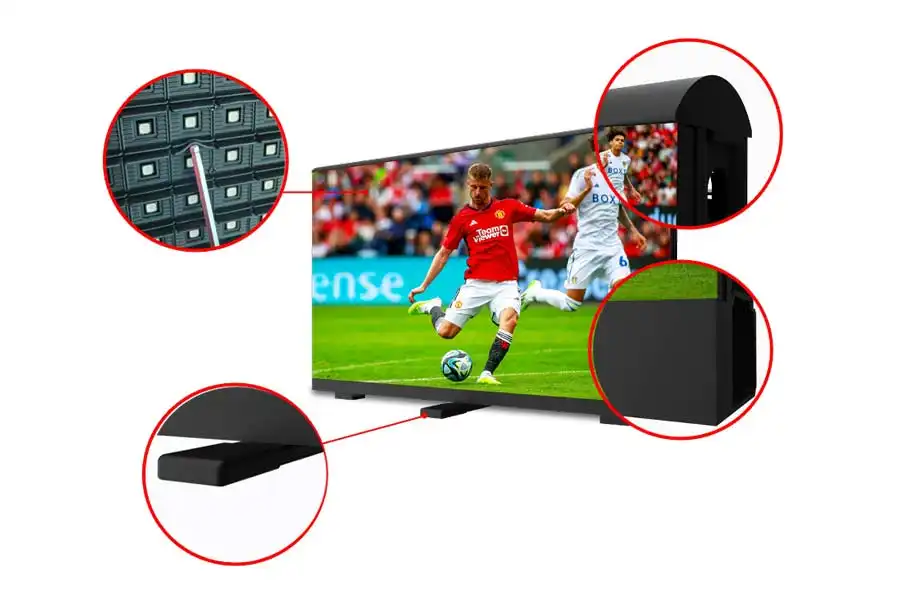

Top protection to display and athletes
Practical trolley for easy transport and storage

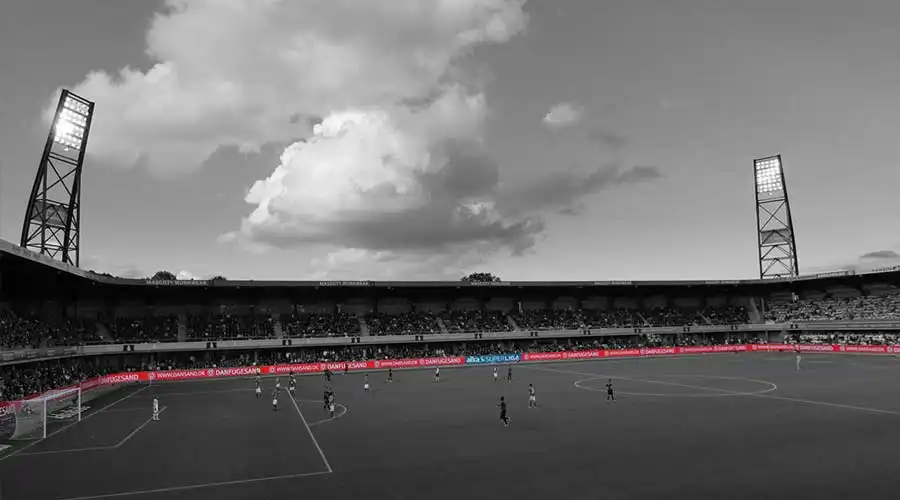

Perimeter solution for indoor and outdoor stadiums

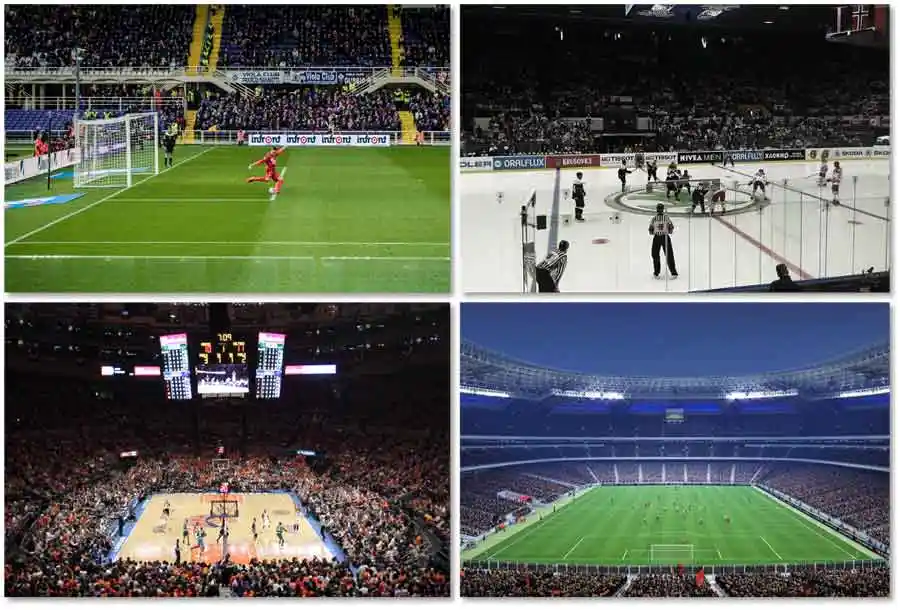

Perfect for stadium perimeter advertising
| XD6 | XD8 | XD10 | |
| Pixel Pitch (mm) | 6.25 | 8.33 | 10 |
| LED Type | SMD2727 | SMD2727 | SMD2727 |
| Panel Size (WxH)/(mm) | 1600x900 | 1600x900 | 1600x900 |
| Pixel Per Panel | 256x144 | 192x108 | 160x90 |
| Panel Material | Aluminum | Aluminum | Aluminum |
| Panel Weight (kg) | 43.5 | 43.5 | 43.5 |
| Module Size (WxH)/(mm) | 400x300 | 400x300 | 400x300 |
| Brightness (nit) | 6500 | 6500 | 6500 |
| Refresh Rate (Hz) | 3840 | 3840 | 3840 |
| Gray Scale (bit) | 16 | 16 | 16 |
| Viewing Angle (H/V) (°) | 160/160 | 160/160 | 160/160 |
| AC Operating Voltage (V) | 110~220 (±5%）50/60Hz | 110~220 (±5%）50/60Hz | 110~220 (±5%）50/60Hz |
| Avg. Power Consumption (W) | 250/sqm | 250/sqm | 250/sqm |
| Max. Power Consumption (W) | 750/sqm | 750/sqm | 750/sqm |
| Storage Temperature (℃) | ﹣40~﹢60 | ﹣40~﹢60 | ﹣40~﹢60 |
| Operating Temperature (℃) | ﹣20~﹢65 | ﹣20~﹢65 | ﹣20~﹢65 |
| IP Rating (Front/Rear) | IP65 | IP65 | IP65 |
| LED Lifetime (H) | 100000 | 100000 | 100000 |
| Maintenance Method | Front & Rear | Front & Rear | Front & Rear |
| Certificate | CE FCC ETL RoHS | CE FCC ETL RoHS | CE FCC ETL RoHS |
