As a kind of creative transparent LED display, holographic LED film screen is a cutting-edge solution for all your indoor advertising signage needs. Featured with ultra-thin design, flexible in multiple sizes and self-adhesive tiles, this holographic LED film screen is easy to install and can be tailored to meet any of your unique requirements.
Pixel Pitch (mm):2.5 / 3.9 / 6.2 / 10
Panel Size (mm):125x1000 / 250x1000 / 250x1200 / 250x1500
Transparency Rate:70% ~ 90%
Brightness (nits):2000 ~ 5000
The transmittance of Cinstar flexible holographic LED film screen display can reach up to 70-90% which varies with different pixel pitch. With such high transparency rate, the LEDs are almost invisible from a certain distance, meanwhile the original glass wall design can be kept untouched and its light condition won't be affected.
The transmittance of Cinstar flexible holographic LED film screen display can reach up to 70-90% which varies with different pixel pitch. With such high transparency rate, the LEDs are almost invisible from a certain distance, meanwhile the original glass wall design can be kept untouched and its light condition won't be affected.
Cinstar flexible holographic LED film screen display can be bent or cut, best solution for curved or special-shaped glass wall installations. The panel can be customized and spliced to meet specific demand, great flexibility in display effect. What is more, it can captivate spectators easily by delivering stunning and high-resolution visual effect.
Cinstar flexible holographic LED film screen display can be bent or cut, best solution for curved or special-shaped glass wall installations. The panel can be customized and spliced to meet specific demand, great flexibility in display effect. What is more, it can captivate spectators easily by delivering stunning and high-resolution visual effect.
With ideal viewing distance, the image looks like floating on the glass wall, delivering you a visual feast with 3D naked eye effect experience. Which can be perfectly integrated with the building to be invisible and create favorable commercial value for your business.
With ideal viewing distance, the image looks like floating on the glass wall, delivering you a visual feast with 3D naked eye effect experience. Which can be perfectly integrated with the building to be invisible and create favorable commercial value for your business.

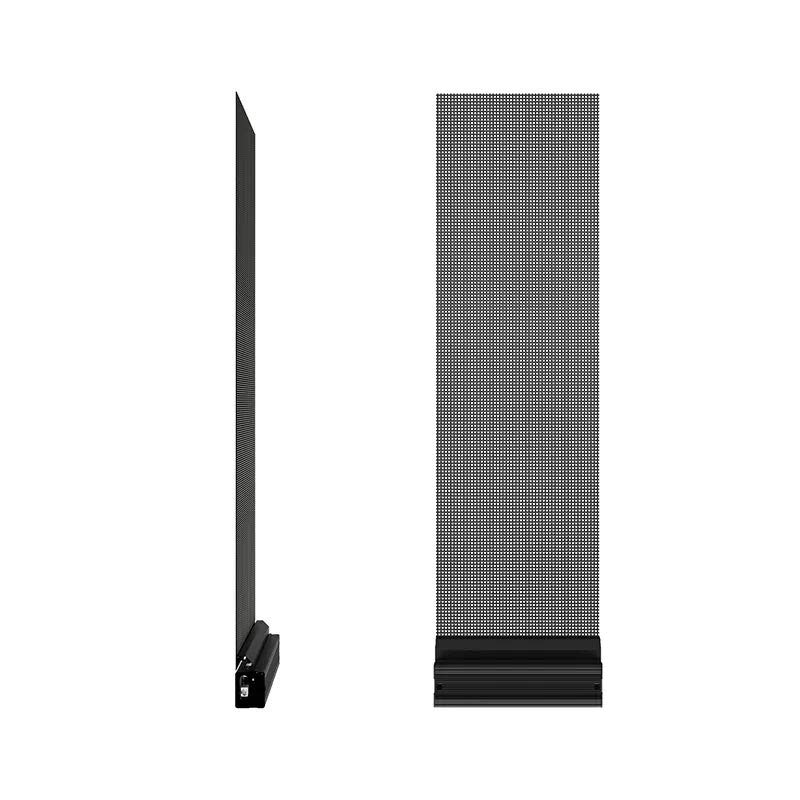

Featured with flexible and self-adhesive design, Cinstar flexible holographic LED film screen display can be directly pasted to any flat or curved glass walls. The ultra-slim (1.8mm in depth) and light weight (4-6kg/sqm) panel can be tailored to different size and shape to meet specific requirement and realize all your bold imagination on the creative setting of the display.
Featured with flexible and self-adhesive design, Cinstar flexible holographic LED film screen display can be directly pasted to any flat or curved glass walls. The ultra-slim (1.8mm in depth) and light weight (4-6kg/sqm) panel can be tailored to different size and shape to meet specific requirement and realize all your bold imagination on the creative setting of the display.

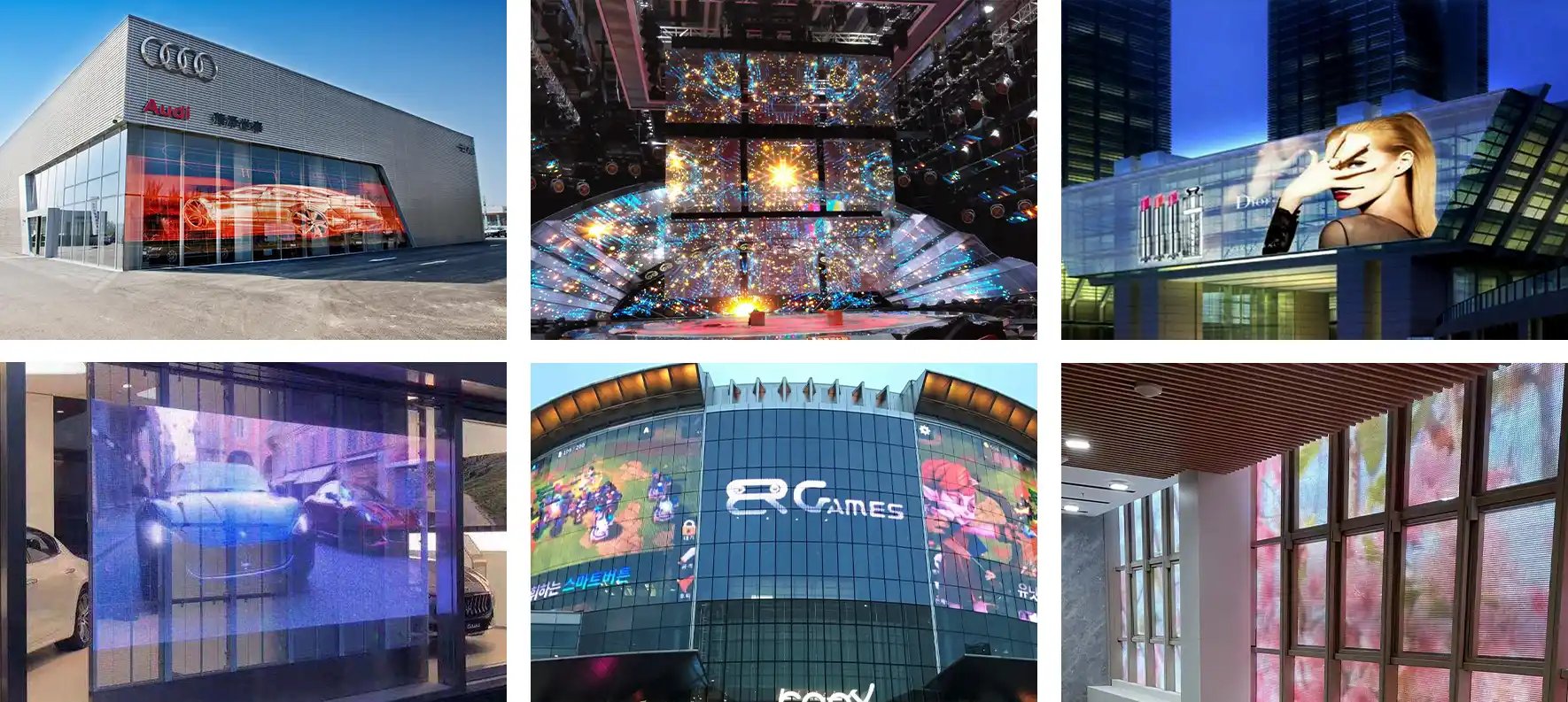

The flexible holographic LED film screen display can be widely installed at retail shop, restaurant, chain store, shopping center and corporate exhibition center etc to deliver eye-catching images and advertisements to achieve its commercial value.
| TF2.5 | TF3.9 | TF6.2 | TF10 | |
| Pixel Pitch (mm) | 2.5 | 3.91 | 6.25 | 10 |
| Pixel Density (dot/ m²) | 160000 | 65536 | 25600 | 10000 |
| Transparency Rate | 70% | 80% | 90% | 94% |
| Display Area (mm) (w*h) | 125x1000/125x1175 | 250x1000/250x1175/250x1465 | 250x1175/250x1475 | 250x1000/250x1200/250x1500 |
| Overall Size (mm) (w*h) | 125x1025/125x1200 | 250x1025/250x1200/250x1500 | 250x1200/250x1500 | 250x1000/250x1200/250x1500 |
| Resolution (dot) (w*h) | 50x400/50x470 | 64x256/64x300/64x376 | 40x188/40x236 | 25x100/25x120/25x150 |
| Brightness (cd/m²) | ≥1200 | ≥3000 | ≥5000 | ≥4000 |
| Weight (kg) | 6.5/sqm | 6/sqm | 5/sqm | 4.8/sqm |
| Scan Mode | Static Scan | Static Scan | Static Scan | Static Scan |
| Lifespan (hour) | ≥ 100000 | ≥ 100000 | ≥ 100000 | ≥ 100000 |
| Gray Scale | 16bit | 16bit | 16bit | 16bit |
| Max Power Consumption(W/ m²) | 800 | 1000 | 1000 | 1000 |
| Avg Power Consumption(W/ m²) | 350 | 375 | 375 | 375 |
| Controlling | Synch/Asynch | Synch/Asynch | Synch/Asynch | Synch/Asynch |
| Input Voltage | AC100~240V 50/60Hz | AC100~240V 50/60Hz | AC100~240V 50/60Hz | AC100~240V 50/60Hz |
| Panel Working Voltage | DC4.2V ±0.2V | DC4.2V ±0.2V | DC4.2V ±0.2V | DC4.2V ±0.2V |
| Working Temperature | 0℃ ~50℃ | 0℃ ~50℃ | 0℃ ~50℃ | 0℃ ~50℃ |
| Working Humidity | 20%RH ~ 90%RH，Non-Condensing | 20%RH ~ 90%RH，Non-Condensing | 20%RH ~ 90%RH，Non-Condensing | 20%RH ~ 90%RH，Non-Condensing |
| Storage Temperature | -20℃ ~ 70℃ | -20℃ ~ 70℃ | -20℃ ~ 70℃ | -20℃ ~ 70℃ |
| Storage Humidity | 10%RH ~ 95%RH，Non-Condensing | 10%RH ~ 95%RH，Non-Condensing | 10%RH ~ 95%RH，Non-Condensing | 10%RH ~ 95%RH，Non-Condensing |
| IP Rating | IP20 | IP20 | IP20 | IP20 |
| Installation | Indoor | Indoor | Indoor | Indoor |
| Packing | Wooden Box / Flight Case | Wooden Box / Flight Case | Wooden Box / Flight Case | Wooden Box / Flight Case |
