M SERIES

Indoor Outdoor Stage Rental LED Display

Specifications
Pixel Pitch (mm): Indoor 2.6 / 2.84 / 2.97 / 3.91
Pixel Pitch (mm): Outdoor 2.84 / 3.47 / 3.91
Refresh Rate(Hz): 3840
Application: Stage Rental LED Display
Key Features
  • Sleek panel design with thickness 84mm weight 7.2kg
  • 500x500mm and 500x1000mm panel sizes for option
  • Modular design makes maintenance quick and easy
  • Magnetic modules enable front and rear service
  • Practical flip device for panel corner protection
  • Satisfy all flat or curved, hanging or floor stacking set-ups
M SERIES
M SERIES

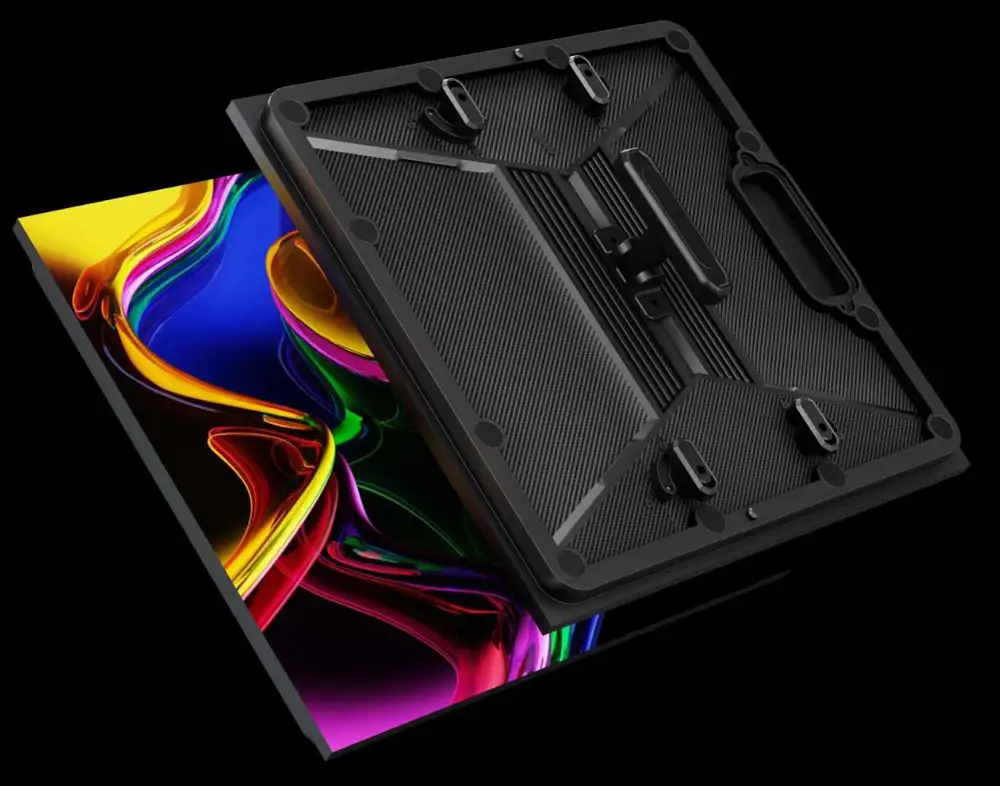

Robust And User Friendly Module

Cinstar M series stage rental LED display module is designed with great strength to ensure the extreme flatness of the panel. The handler and safety locks make it easy and safe to operate.

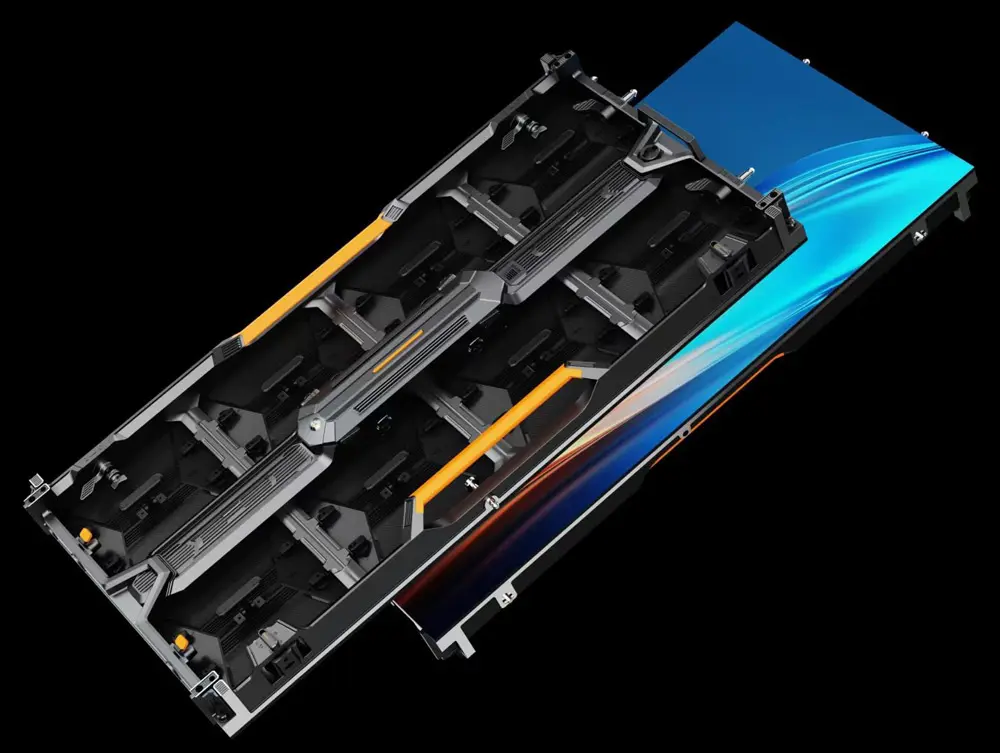

Two Panel Sizes Maximize Your Events Possibilities

Cinstar M series stage rental LED display is designed with 500x500mm and 500x1000mm panel sizes for option. It sets no limit to any of your events and create more business possibilities.

M SERIES

M SERIES

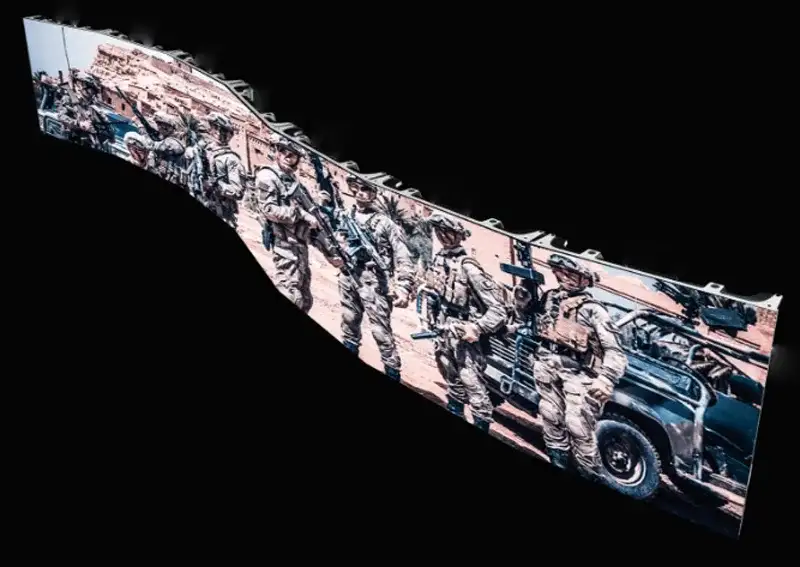

Versatile Creative Installation For Any Events

Cinstar M series stage rental LED display is so versatile that it could be used as flat LED screen, right angle set-up, concave or convex installation. All these features make it easy for you to achieve any special shape and creative effect.

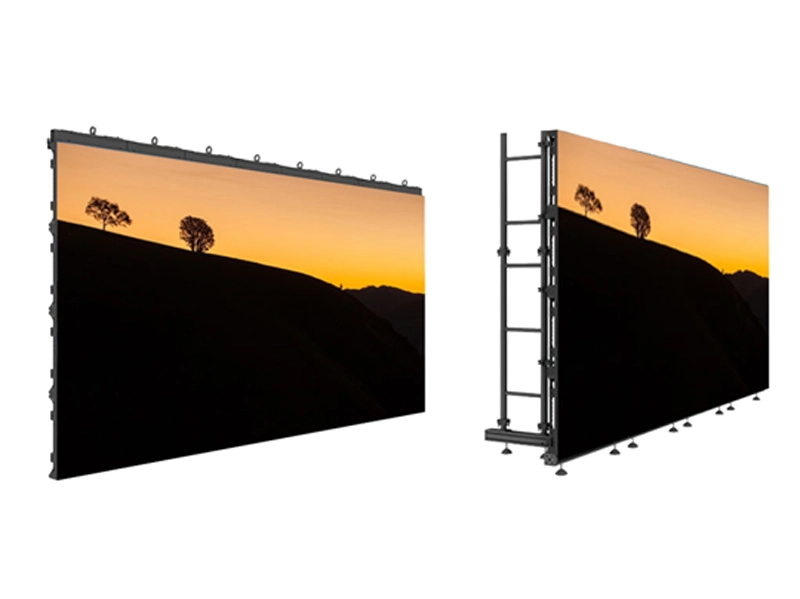

Truss Hanging And Ground Stacking Available

Cinstar M series stage rental LED display can be installed as truss hanging or ground stacking to meet the various requirements of your events. More possibilities bring you more opportunities!

M SERIES

M SERIES

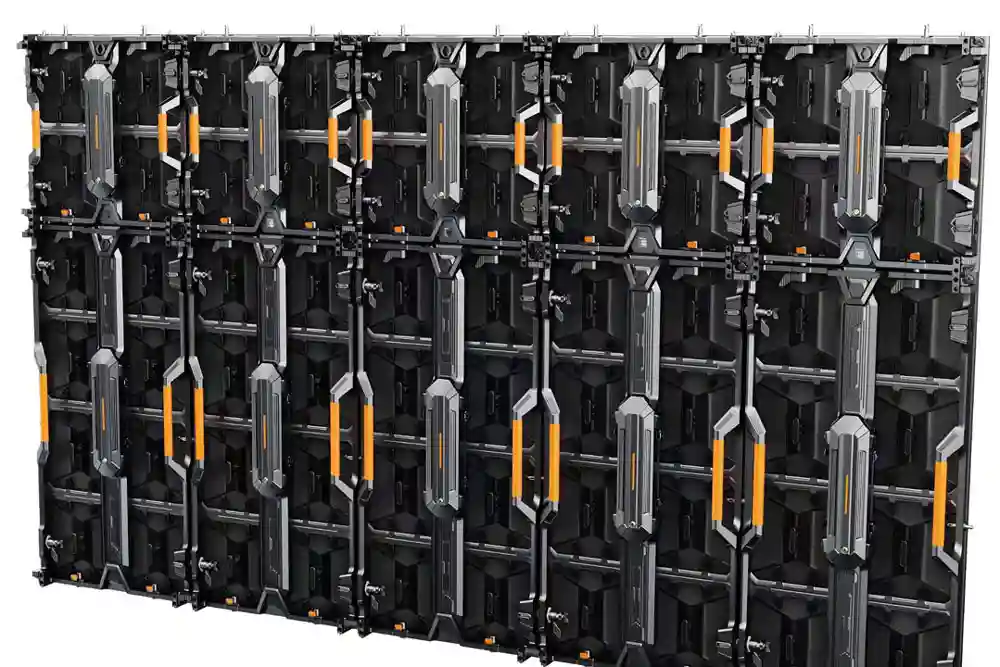

High Profile Mechanical Design

Cinstar M series stage rental LED display is featured with high precision die-cast aluminum for perfect seamless connection and splicing. Practical corner protection flip ensuring no LED damage in transportation. Eye-catching and robust panel design make it reliable for any of your high profile rental events.

M Series Features

Two panel sizes for option

Truly modular design

Versatile creative installation

Seamless screen connection

Practical corner protection design

Suspension and floor stacking

M Series Showcase
Technical Specification
E2.6 E2.8 E2.9 E3.9 E2.8(Outdoor) E3.9(Outdoor)
Pixel Pitch (mm) 2.6 2.84 2.97 3.91 2.84 3.91
LED Type SMD 1515 SMD 1515 SMD 1515 SMD 2121 SMD 1415 SMD 1921
Module Size (WxH)/(mm) 250x250 250x250 250x250 250x250 250x250 250x250
Panel Size (WxH)/(mm) 500x500 / 500x1000 500x500 / 500x1000 500x500 / 500x1000 500x500 / 500x1000 500x500 / 500x1000 500x500 / 500x1000
Pixel Per Panel 192x192/192x384 176x176/176x352 168x168/168x336 128x128/128x256 176x176/176x352 128x128/128x256
Panel Material Die-casting Aluminum Die-casting Aluminum Die-casting Aluminum Die-casting Aluminum Die-casting Aluminum Die-casting Aluminum
Panel Weight (kg) 7.2 / 14 7.2 / 14 7.2 / 14 7.2 / 14 7.5 / 14.5 7.5 / 14.5
Brightness (nit) 700 700 1000 800 5000 5000
Refresh Rate (Hz) > 3840 > 3840 > 3840 > 3840 > 3840 > 3840
Gray Scale (bit) 16 16 16 16 16 16
Viewing Angle (H/V) (°) 160/160 160/160 160/160 160/160 140/140 140/140
Avg. Power Consumption (W) 170/sqm 150/sqm 170/sqm 150/sqm 210/sqm 200/sqm
Max. Power Consumption (W) 480/sqm 530/sqm 530/sqm 530/sqm 630/sqm 600/sqm
Operating Temperature (℃) ﹣20~﹢50 ﹣20~﹢50 ﹣20~﹢50 ﹣20~﹢50 ﹣20~﹢50 ﹣20~﹢50
IP Rating (Front/Rear) IP40/IP21 IP40/IP21 IP40/IP21 IP40/IP21 IP65 IP65
LED Lifetime (H) 100000 100000 100000 100000 100000 100000
Module Maintenance Front/Rear Front/Rear Front/Rear Front/Rear Front/Rear Front/Rear
PSU & Others Maintenance Rear Rear Rear Rear Rear Rear

Wanna Upgrade Your Next Projects?
