| Specifications | |
| Pixel Pitch (mm): | 2.6 / 2.9 / 3.9 |
| Brightness (nits): | up to 6000 |
| Refresh Rate(Hz): | 1920-3840 |
| Application: | Indoor & Outdoor Event Production |

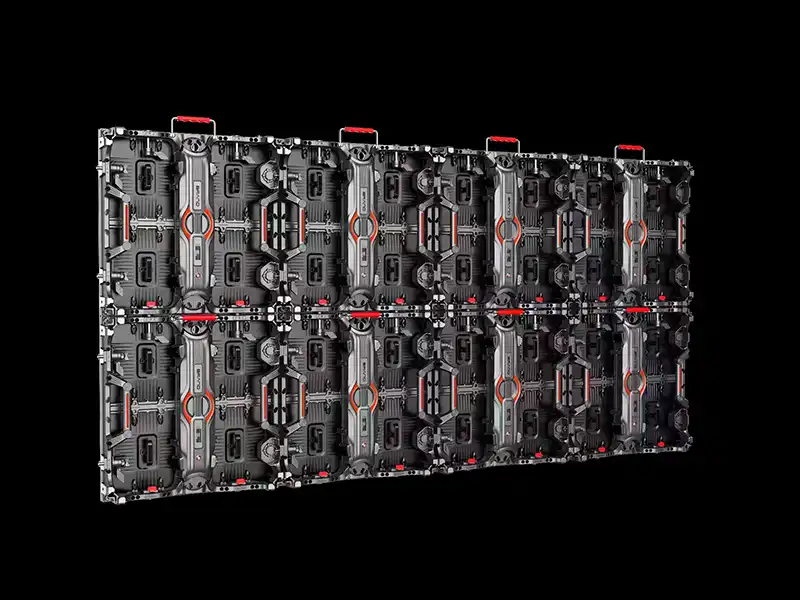

Cinstar E series indoor and outdoor rental LED video wall is featured with high precision die-cast aluminum for perfect seamless connection and splicing. Fast locks enable set-ups and dismantle extremely quick and easy. The eye-catching and robust panel design make it reliable for any of your high profile rental events.

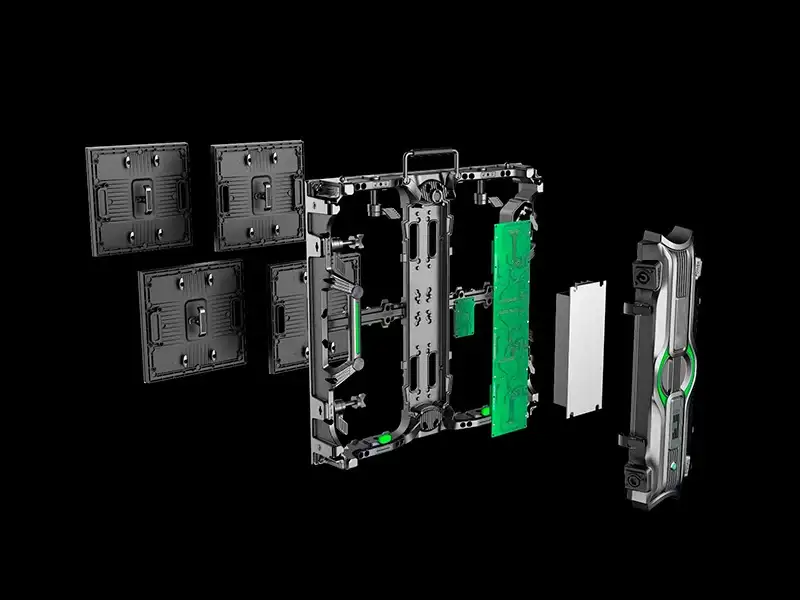

Cinstar E series rental LED video wall is featured with modular design, all the modules and power box can be maintained from both front and rear sides. The maintenance is extremely quick and easy, brings no surprise to your events. These user friendly designs can greatly ease your maintenance work and give you peace of mind.

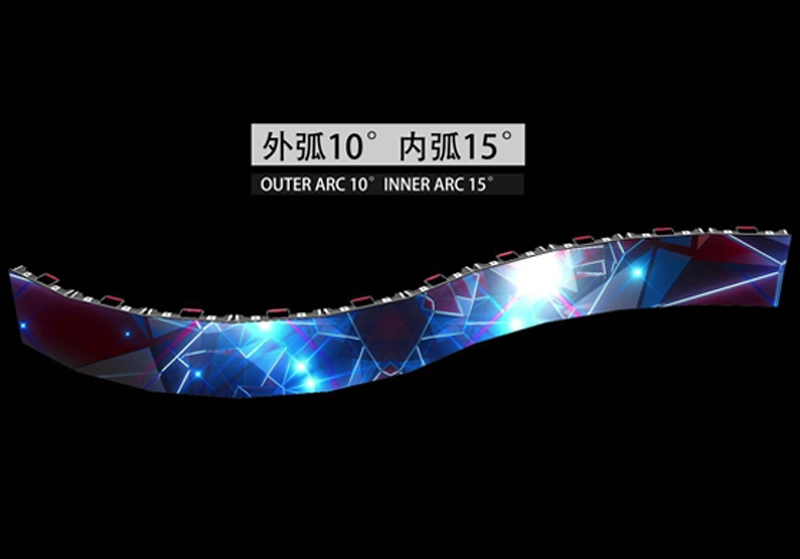

Cinstar E series rental LED video wall is so versatile that it could be used as flat LED video wall, right angle set-up, concave or convex installation. All these features make it easy for you to achieve any special shape and creative effect.
Cinstar E series rental LED video wall is designed with positioning pins for seamless connection and anti-collision device to protect the bottom LEDs from damage. The fast side locks can make the installation and removal very quick and easy.
Corner protection flip can effectively protect the corners of panel when doing set up and transport in road case. Which can greatly minimize the dead pixels caused by collision.

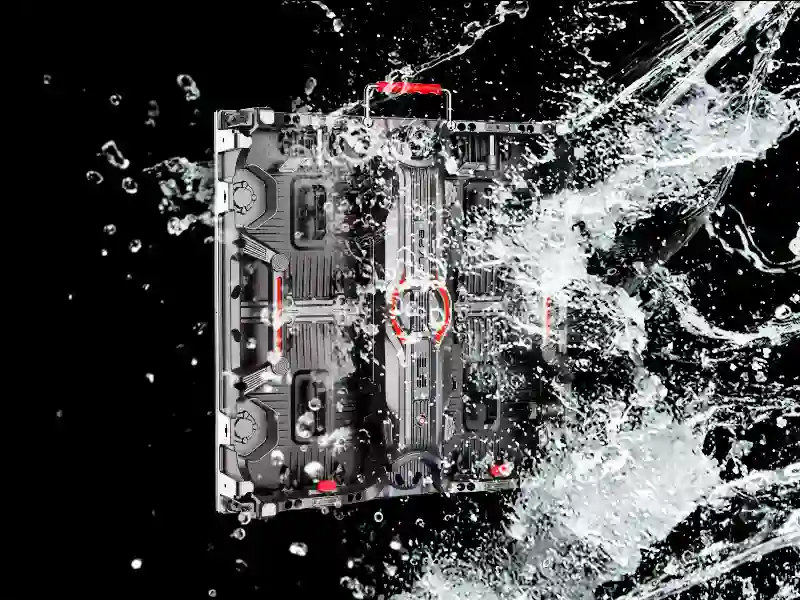

Featured with high IP rating (IP65), Cinstar E series can be applied for any of your events, no matter it is for indoor or outdoor applications. One investment on one pitch can satisfy all your requirements, optimizing your ROI.

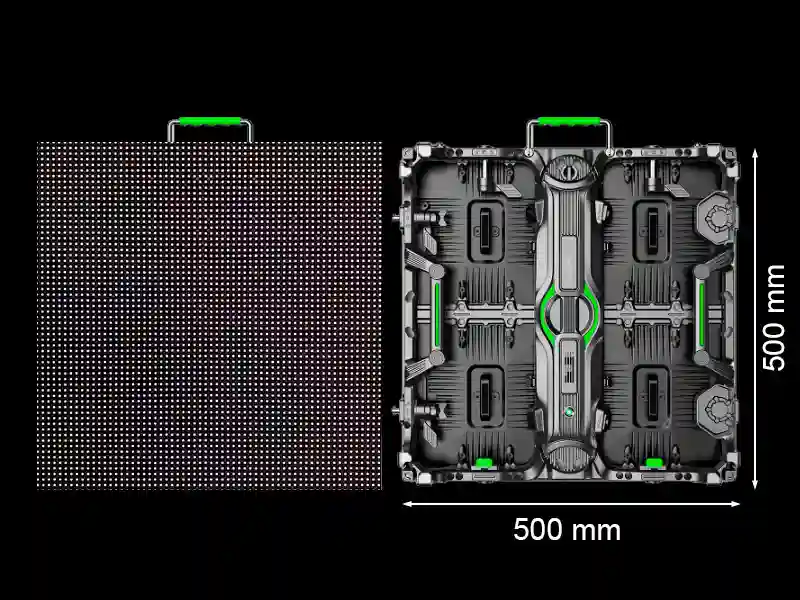

Cinstar E series rental LED video wall has 500x500mm and 500x1000mm panel sizes for option. With main batch of 500x1000mm and a certain proportion of 500x500mm, you can do any events with very limited budget.
Cinstar E series rental LED video wall can be installed as hanging or floor stacking to meet the various requirements of your events. More possibilities can bring you more business opportunities!
Two panel sizes for option
Truly modular design
Versatile creative installation
Seamless screen connection
Practical corner protection design
Suspension and floor stacking
| E2.6 | E2.9 | E3.9 | E2.9(Outdoor) | E3.9(Outdoor) | |
| Pixel Pitch (mm) | 2.6 | 2.97 | 3.91 | 2.97 | 3.91 |
| LED Type | 3 in 1 SMD | 3 in 1 SMD | 3 in 1 SMD | 3 in 1 SMD | 3 in 1 SMD |
| Module Size (WxH)/(mm) | 250x250 | 250x250 | 250x250 | 250x250 | 250x250 |
| Panel Size (WxH)/(mm) | 500x500 / 500x1000 | 500x500 / 500x1000 | 500x500 / 500x1000 | 500x500 / 500x1000 | 500x500 / 500x1000 |
| Pixel Per Panel | 192x192 / 192x384 | 168x168 / 168x336 | 128x128 / 128x256 | 168x168 / 168x336 | 128x128 / 128x256 |
| Panel Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Panel Weight (kg) | 7.5 / 14 | 7.5 / 14 | 7.5 / 14 | 7.8 / 14.5 | 7.8 / 14.5 |
| Brightness (nit) | > 1000 | > 1000 | > 1200 | > 5500 | > 5500 |
| Refresh Rate (Hz) | 1920-3840 | 1920-3840 | 1920-3840 | 1920-3840 | 1920-3840 |
| Gray Scale (bit) | 16 | 16 | 16 | 16 | 16 |
| Viewing Angle (H/V) (°) | 160/160 | 160/160 | 160/160 | 160/140 | 160/140 |
| Avg. Power Consumption (W) | 240/sqm | 210/sqm | 218/sqm | 236/sqm | 243/sqm |
| Max. Power Consumption (W) | 720/sqm | 630/sqm | 654/sqm | 708/sqm | 729/sqm |
| Operating Temperature (℃) | ﹣20~﹢60 | ﹣20~﹢60 | ﹣20~﹢60 | ﹣20~﹢60 | ﹣20~﹢60 |
| IP Rating (Front/Rear) | IP40/IP21 | IP40/IP21 | IP40/IP21 | IP65 | IP65 |
| LED Lifetime (H) | 100000 | 100000 | 100000 | 100000 | 100000 |
| Module Maintenance | Front/Rear | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
| PSU & Others Maintenance | Rear | Rear | Rear | Rear | Rear |
