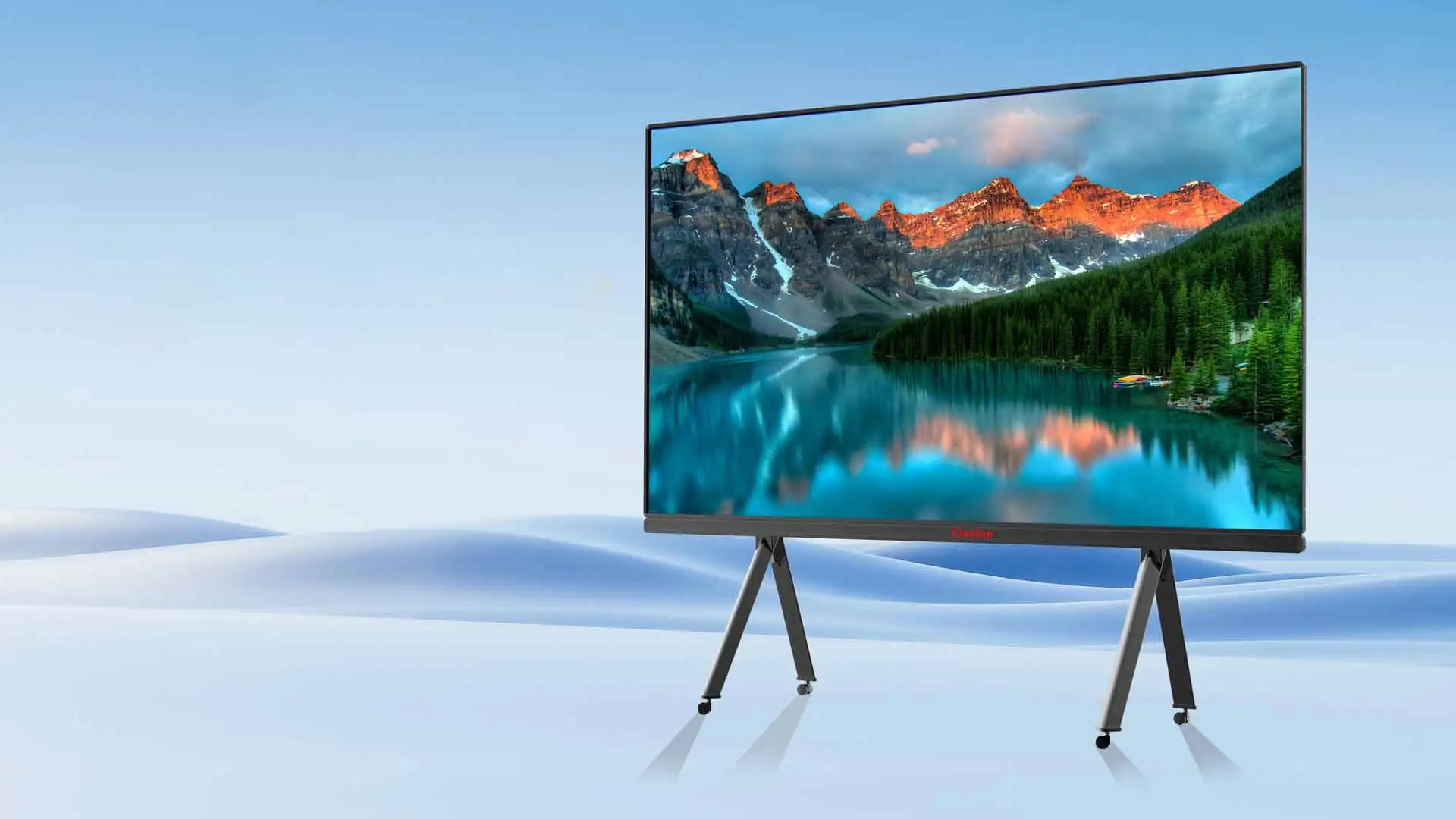

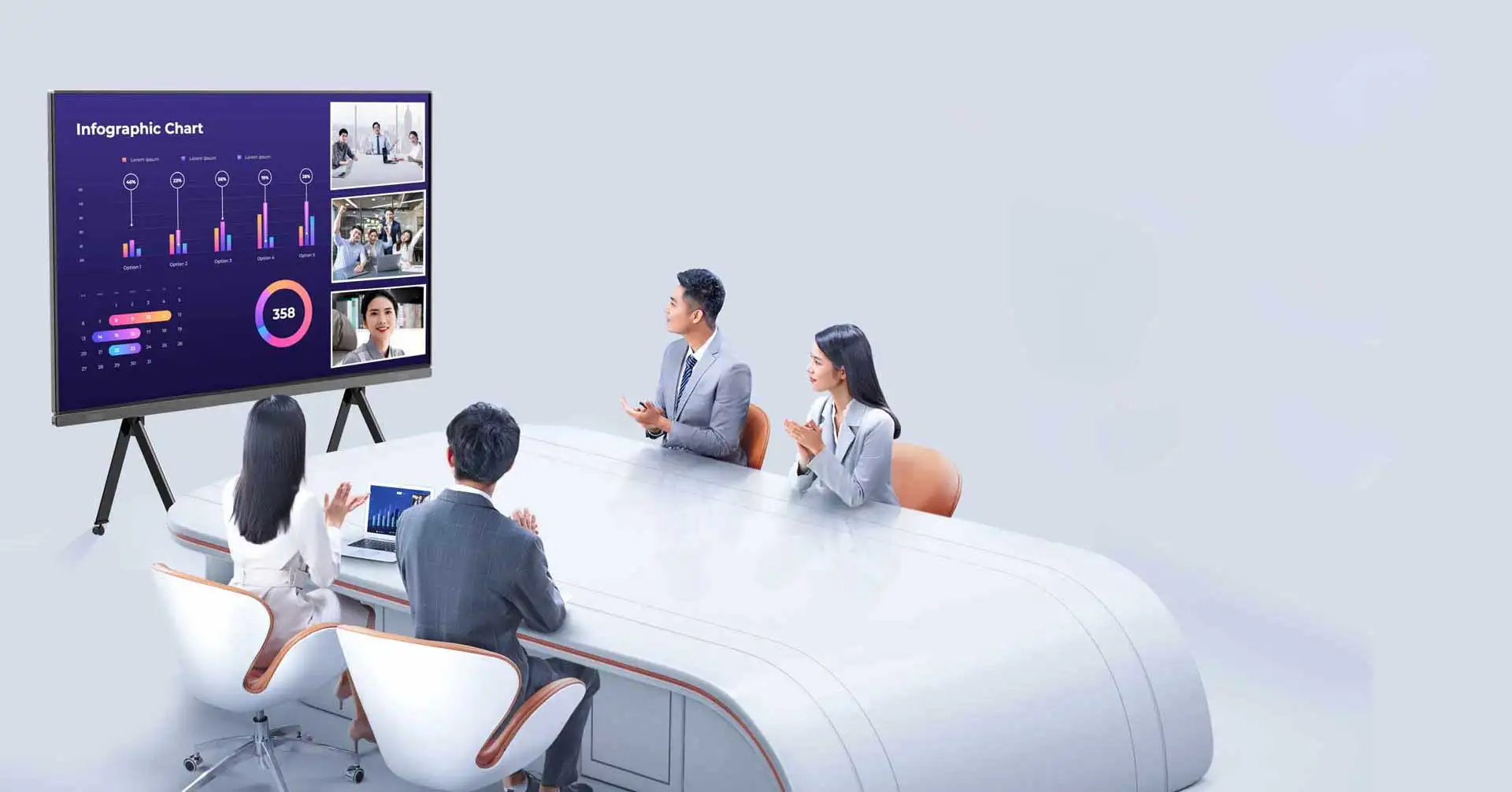

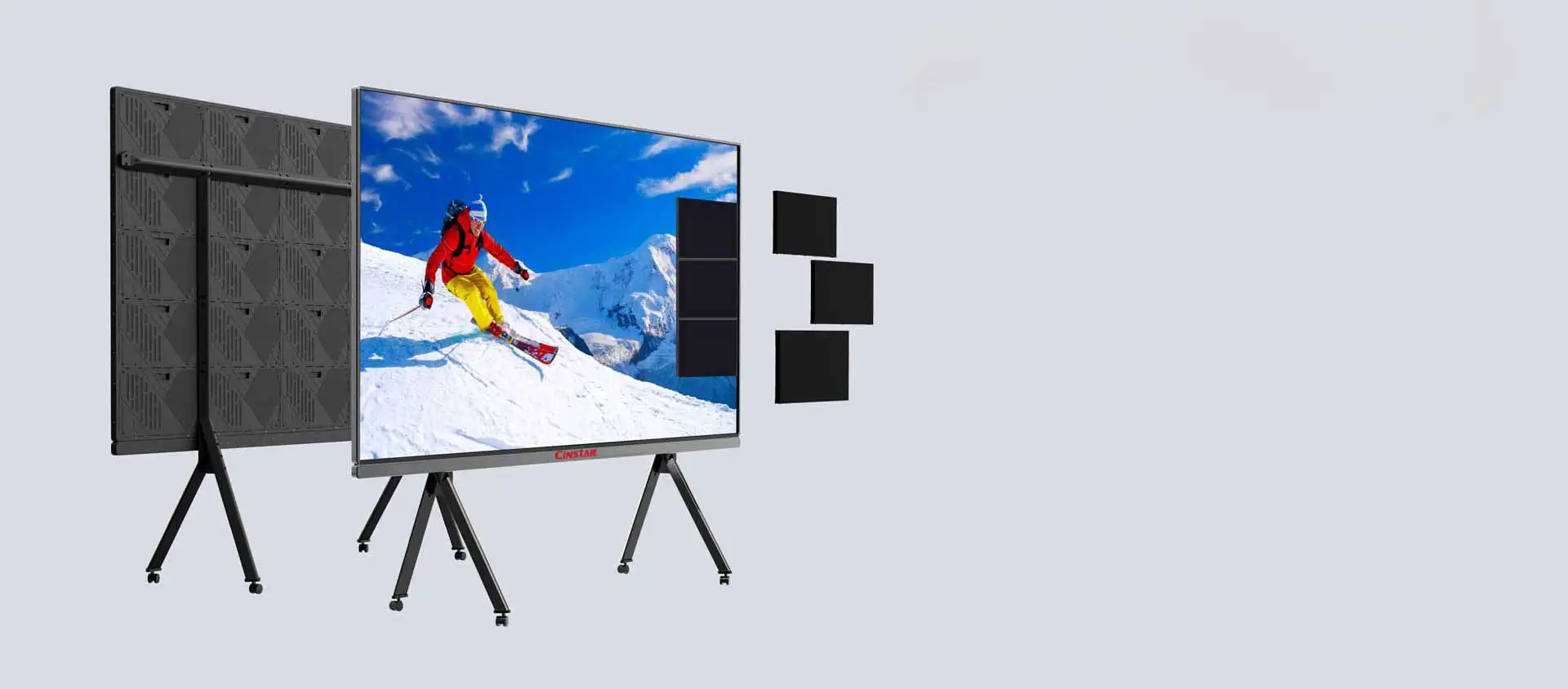

Ideal for enterprise meeting

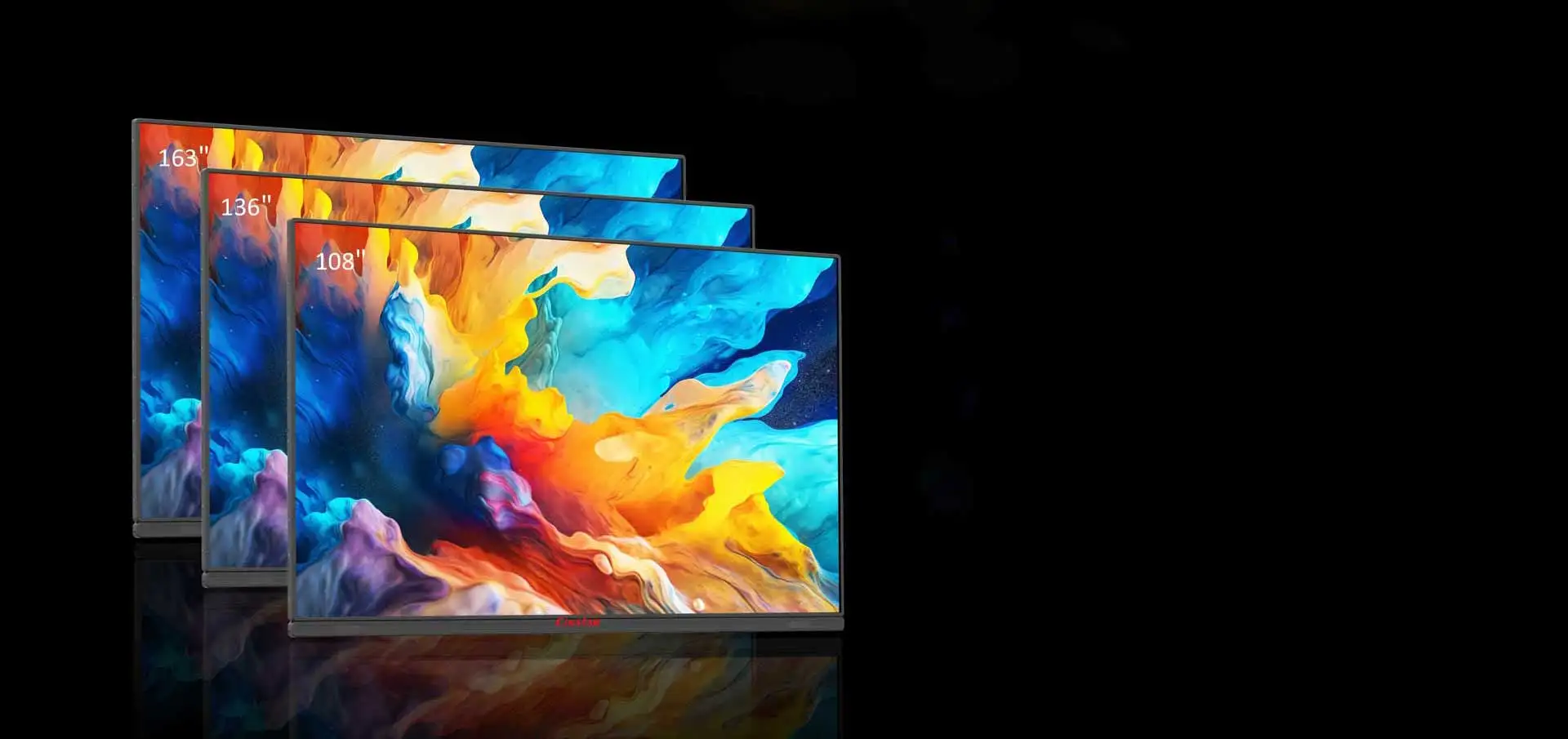

1080P/4K resolution available in 108" 136" 163" diagonal size
6000:1 contrast ratio, 16 bit grayscale and high refresh rate 3840Hz
Integrated display control
Simplified wiring & debugging
Whole system front servicibility
Screen scalable & wireless projection

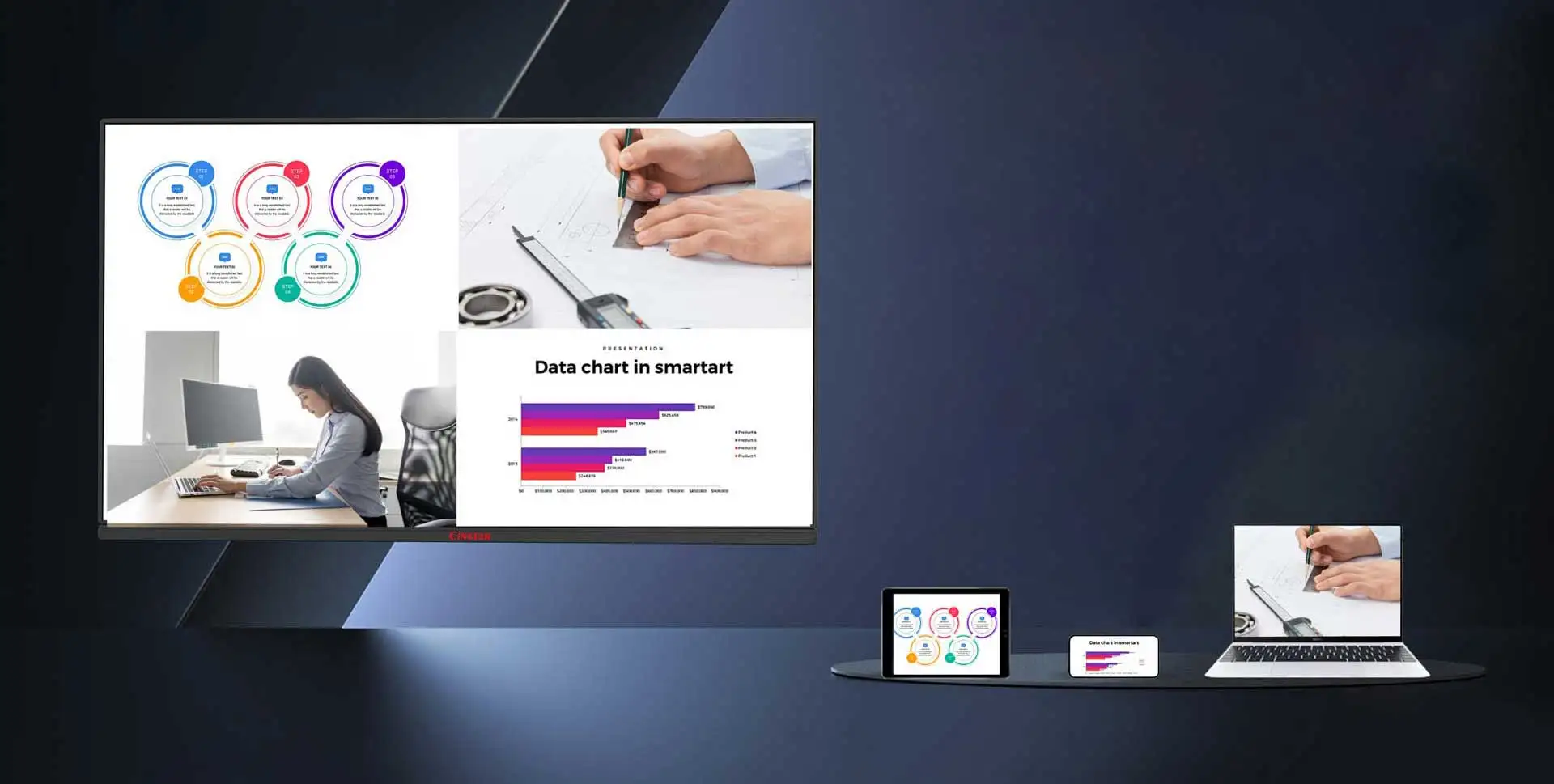

Multiple devices connection (Mobile / Tablet / computer)
USB disk plug and play
Compatible with mainstream video conference softwares
All types of media and data information input in real time

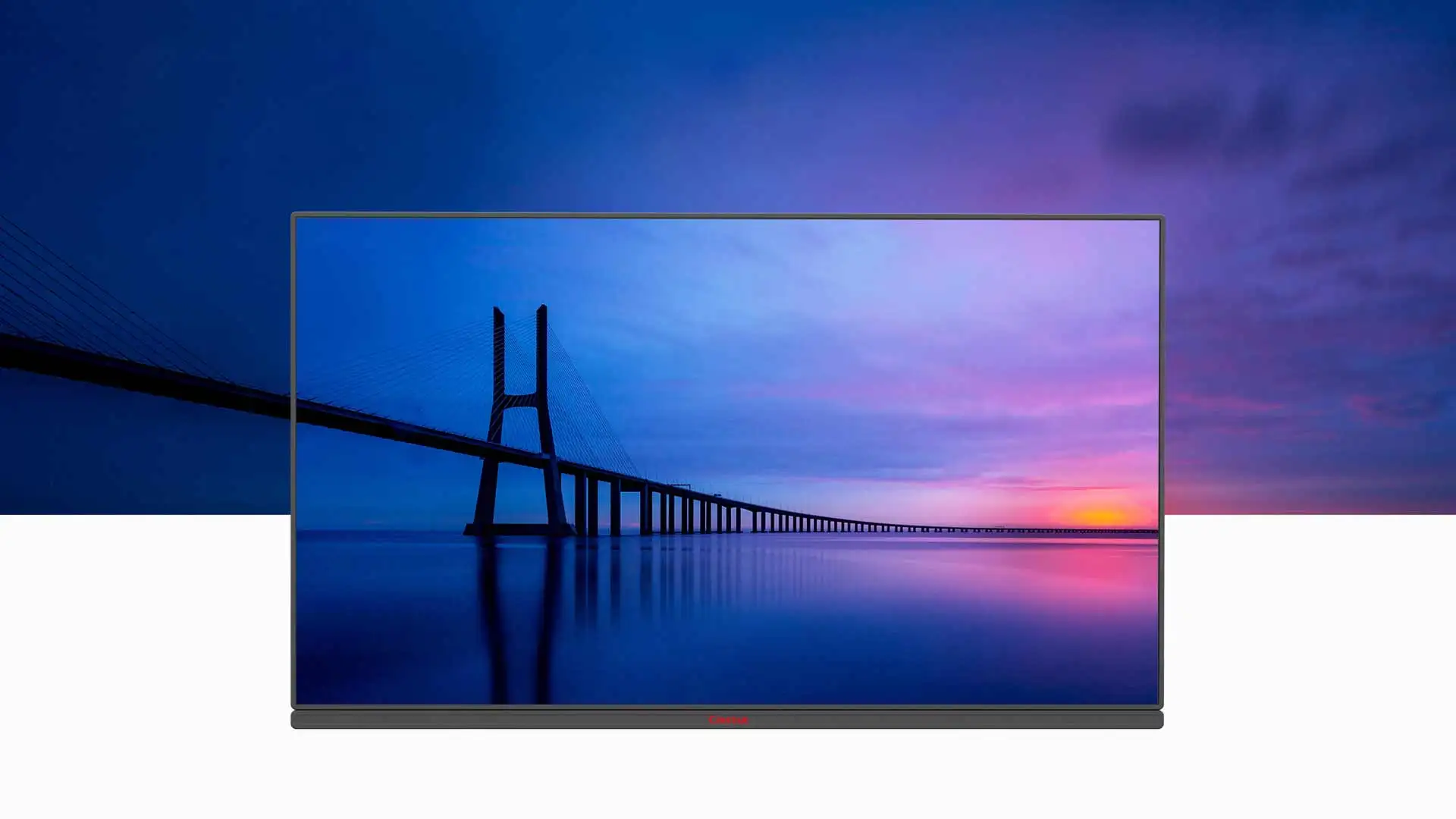

Ultra-thin - thickness only 38mm/1.5 inch

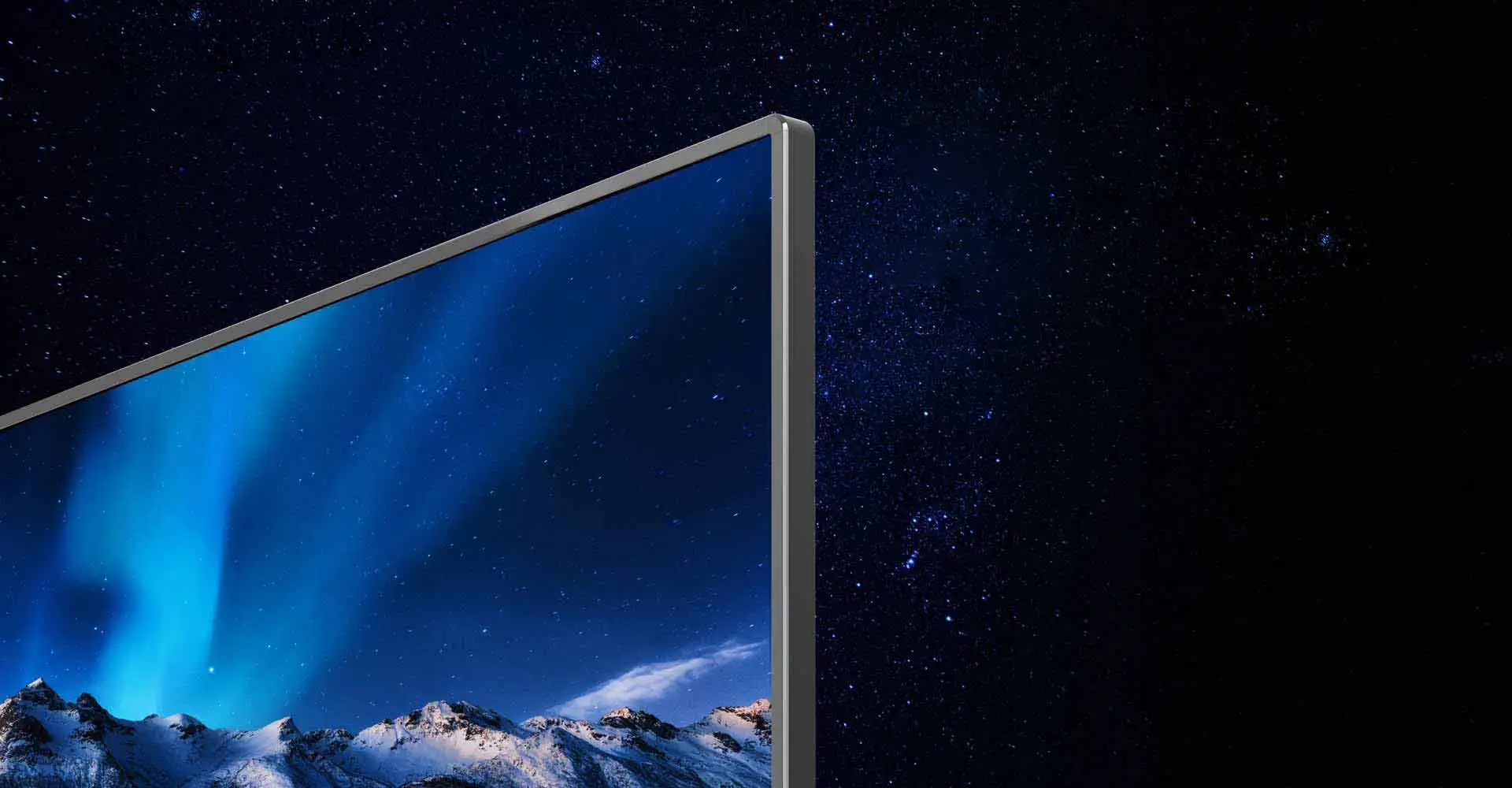

Well crafted ultra-narrow frame with rounded corner
170° ultra-wide viewing angle ensuring immersive visual

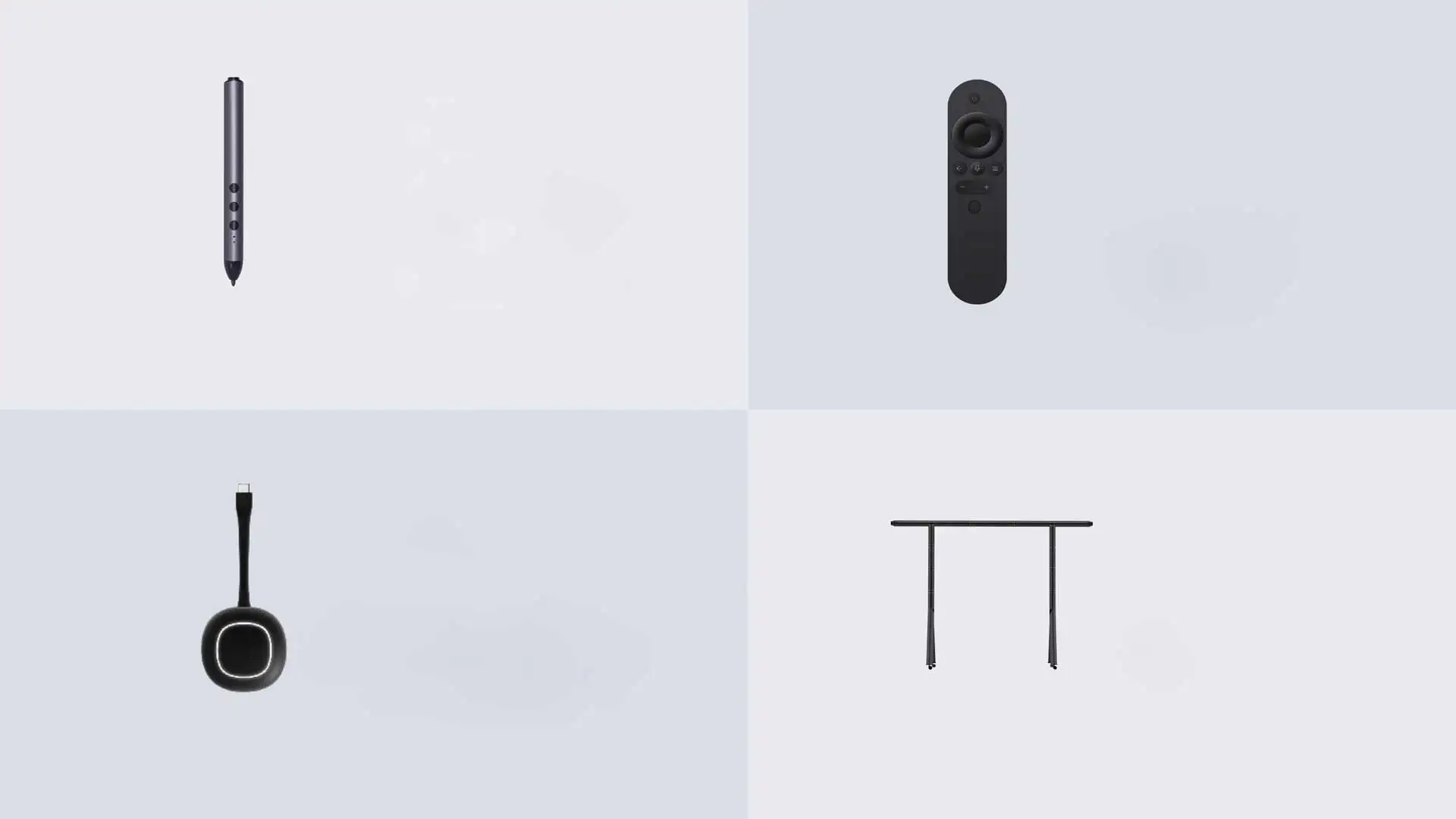

Smart Pen
Remote Controller
Projection Device
Mobile Bracket
Wide pixel pitch available
1080P/4K resolution
Versatile content management
Touch screen available
Detailed image production
Easy screen projection
| CTV 0.9 | CTV 1.2 | CTV 1.5 | CTV 1.8 | |
| Pixel Pitch (mm) | 0.93 | 1.25 | 1.56 | 1.87 |
| LED Type | Mini LED / COB | SMD1010 / COB | SMD1010 / COB | SMD1010 / COB |
| Pixel Density (dots/㎡) | 1137778 | 640000 | 409600 | 285333 |
| Display Size (WxH)/(mm) | 3600x2025 | 2400x1350 | 3000x1687.5 | 3600x2025 |
| Overall Size (WxH)/(mm) | 3630x2840 | 2430x2165 | 3030x2502.5 | 3630x2840 |
| Display Diagonal | 163" | 108" | 136" | 163" |
| Display Resolution (WxH) | 4K | 1080P | 1080P | 1080P |
| Brightness (nit) | 600-800 | 600-800 | 600-800 | 600-800 |
| Refresh Rate (Hz) | ≥ 3840 | ≥ 3840 | ≥ 3840 | ≥ 3840 |
| Gray Scale (bit) | 16 | 16 | 16 | 16 |
| Contrast Ratio | 6000:1 | 6000:1 | 6000:1 | 6000:1 |
| Viewing Angle (H/V) (°) | 170/170 | 170/170 | 170/170 | 170/170 |
| Operating Temperature (℃) | ﹣20~﹢50 | ﹣20~﹢50 | ﹣20~﹢50 | ﹣20~﹢50 |
| IP Rating (Front/Rear) | IP40/IP21 | IP40/IP21 | IP40/IP21 | IP65 |
| LED Lifetime (H) | 100000 | 100000 | 100000 | 100000 |
| Module Maintenance | Front | Front | Front | Front |
| PSU & Others Maintenance | Front | Front | Front | Front |
