| Specifications | |
| Pixel Pitch (mm): | 0.78 / 0.93 / 1.25 / 1.56 / 1.87 |
| Brightness (nits): | 600 |
| Refresh Rate(Hz): | > 3840 |
| Application: | TV Studio / Conference Room / Home Cinema |

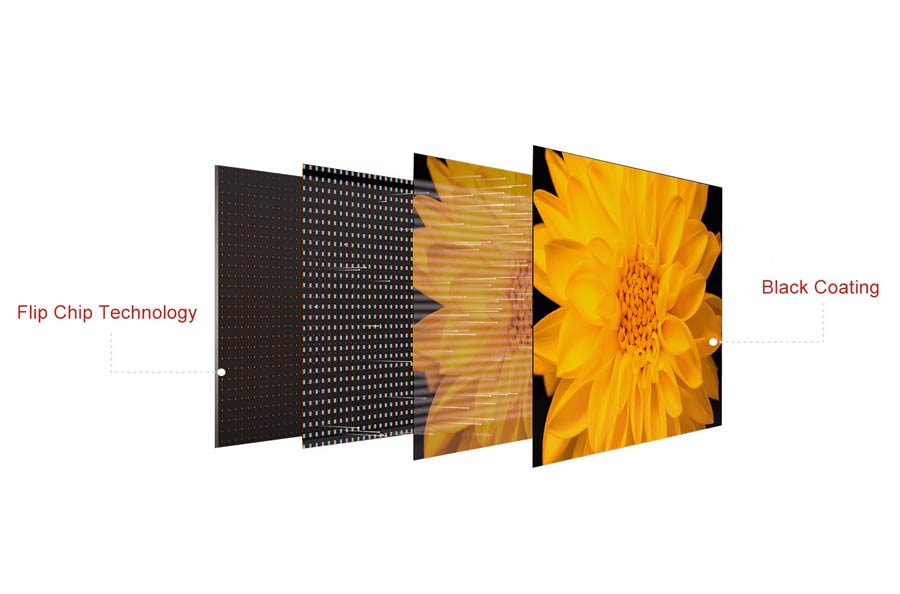

Featuring with deep black coating technology, Cinstar high profile COB CH series direct view LED video wall panels are capable of presenting stunning contrast ratio of 10000:1 to maintain the best image reproduction and extraordinary visual experience.

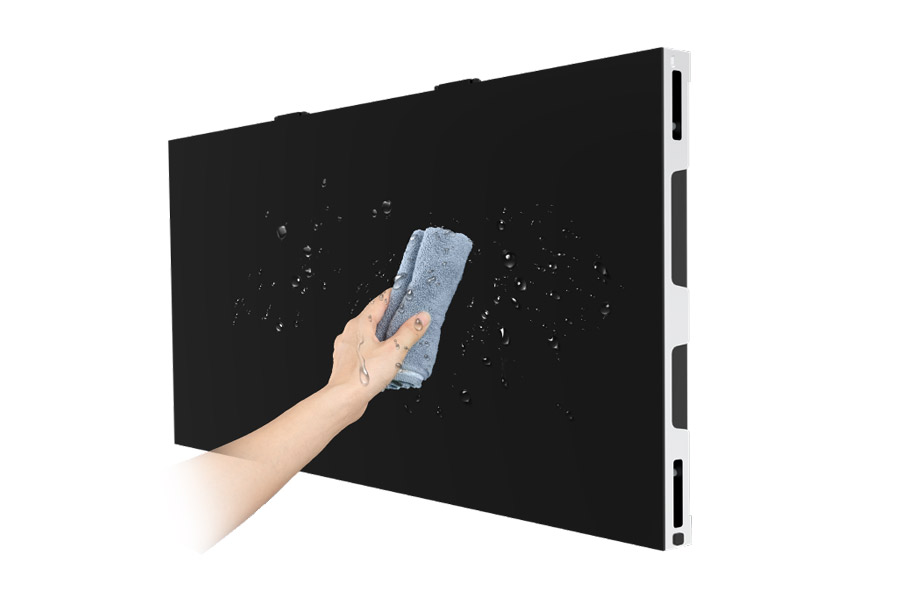

Comparing with conventional SMD, the flip chip COB direct view LED video wall panels are greatly upgraded to deliver the 360° all-around protection against the external impacts like moisture-resistant, dust-resistant, anti-collision and anti-oxidation etc, ensuring the LED video wall long-lasting operation.

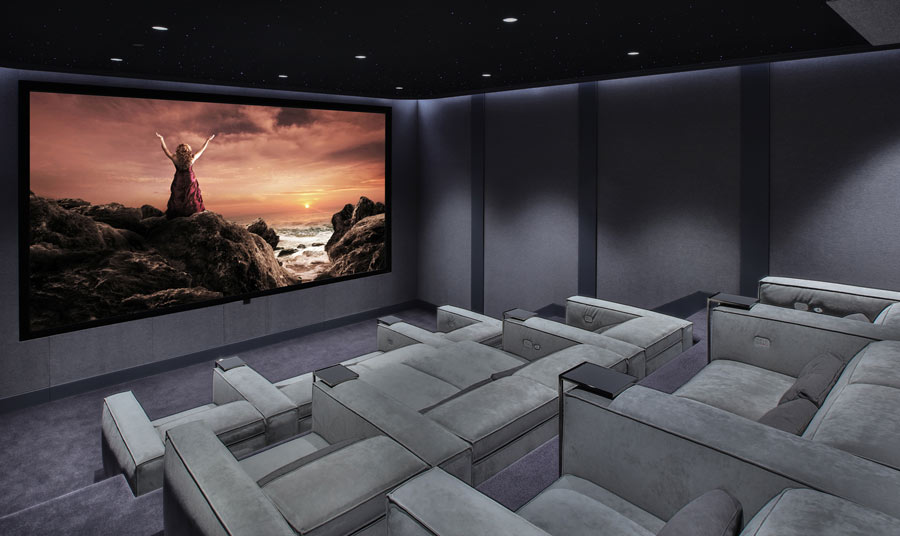

Cinstar CH series direct view LED video wall panels offer versatile solutions for direct-view video signage applications where a narrow pixel pitch LED video wall is needed for HD installation scenarios like TV broadcasting studios, conference room, board room, home cinema etc. Pixel pith available from 0.62mm to 1.87mm.
Cinstar CH COB direct view LED video wall panel features wide color gamut, better color saturation than SMD, which making sure wide color coverage, precise reproduction of true colors and resulting the more realistic image display. HDR10 technology is available for ultimately detailed image(optional).

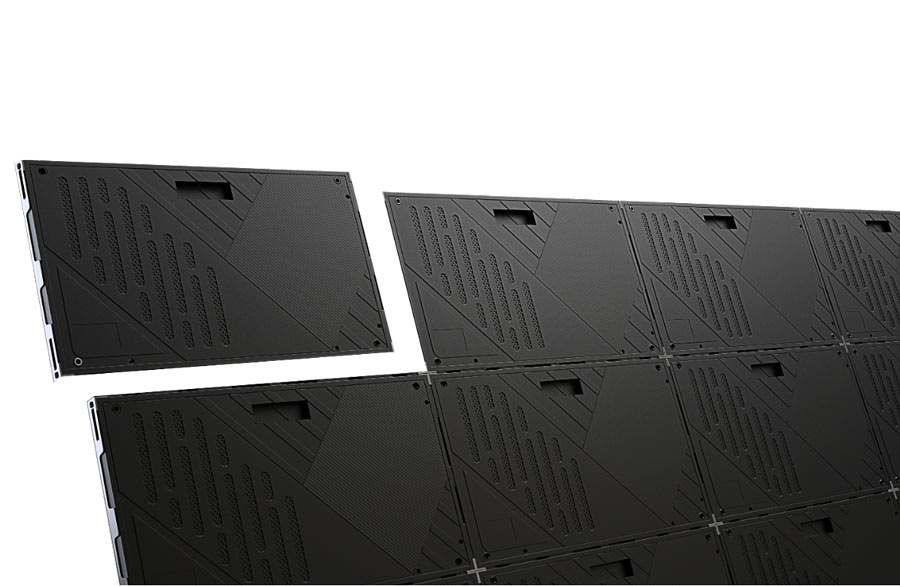

Cinstar CH series direct view LED video wall panels apply innovative invisible built-in cable connection, ensuring super clean rear appearance and great visual enjoyment. No jumper cable design makes an easier installation work on site and secures better stability and lower failure rate.

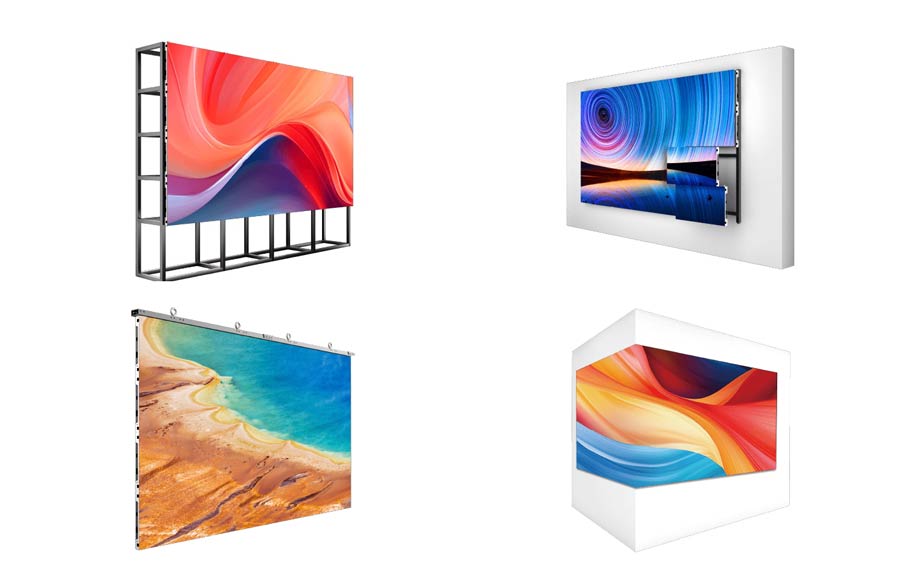

Cinstar CH series direct view LED video wall panel size can be tailored for specific project requirements. It optimizes all the possible installations including wall mounting, right angle setup, all-in-one LED wall, suspension or floor standing etc. One product can meet all your applications.

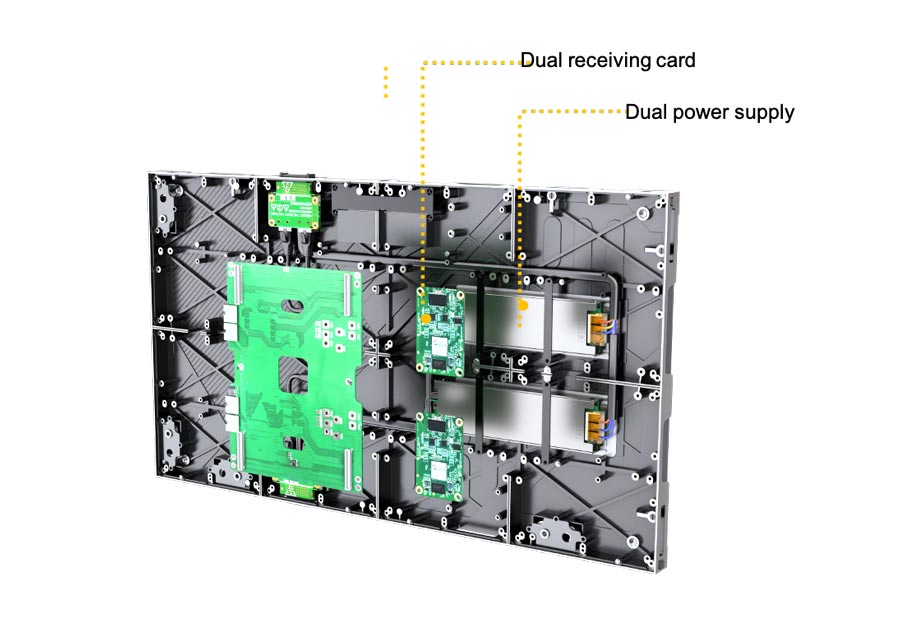

Cinstar CH series direct view LED video wall panels could be customized to dual back-up for special applications like television broadcast studio, control room, transportation hub and command center etc, providing the uninterrupted power and signal, assuring you the peace of mind.

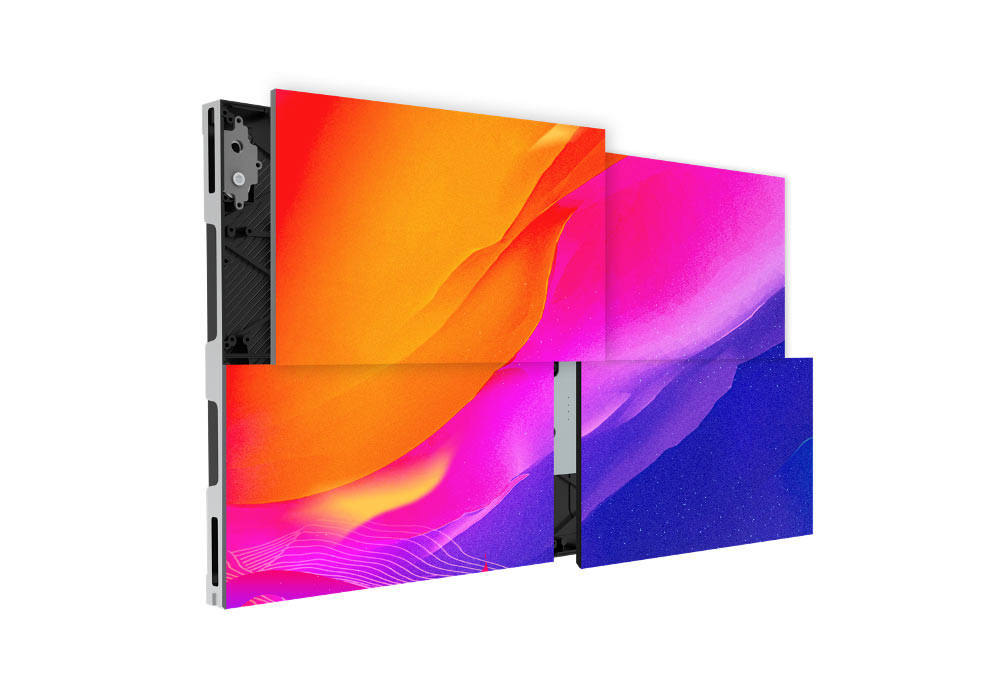

Cinstar CH series direct view LED video wall can be installed and maintained from front to ultimately save the space at rear side when for wall mounted installation. The hot swappable module makes the maintenance work extremely easy to be performed. A layman can do it well!

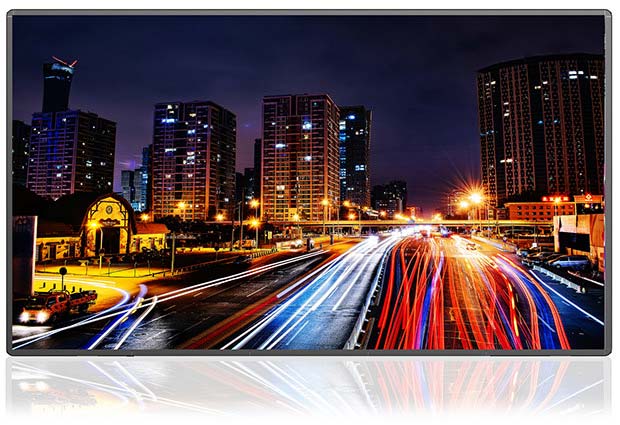

The sleek and seamless high definition LED video wall is capable of delivering an optimal visual performance with high refresh rate, excellent greyscale level, high contrast ratio and wide color gamut. The ultra-high precision aluminum panel allowing excellent heat dissipation for enhanced power efficiency and silent performance.
Superb visual performance
High contrast and wide colour gamut
Versatile installation solutions
Super slim light weight panel
Both front and rear maintenance options
Convection cooled, no fans on board
| CH0.7 | CH0.9 | CH1.2 | CH1.5 | |
| Pixel Pitch (mm) | 0.78 | 0.93 | 1.25 | 1.53 |
| LED Type | COB Technology | COB Technology | COB Technology | COB Technology |
| Panel Size (WxH)/(mm) | 600x337.5 | 600x337.5 | 600x337.5 | 600x337.5 |
| Pixel Per Panel | 768x432 | 640x360 | 480x270 | 384x216 |
| Panel Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Panel Weight (kg) | 4.5 | 4.5 | 4.5 | 4.5 |
| Module Size (WxH)/(mm) | 150x168.75 | 150x168.75 | 150x168.75 | 150x168.75 |
| Brightness (nit) | ≥ 600 | ≥ 600 | ≥ 600 | ≥ 600 |
| Refresh Rate (Hz) | ≥ 3840 | ≥ 3840 | ≥ 3840 | ≥ 3840 |
| Gray Scale (bit) | 16 | 16 | 16 | 16 |
| Viewing Angle (H/V) (°) | 170/170 | 170/170 | 170/170 | 170/170 |
| AC Operating Voltage (V) | 110~240 (±5%）50/60Hz | 110~240 (±5%）50/60Hz | 110~240 (±5%）50/60Hz | 110~240 (±5%）50/60Hz |
| Avg. Power Consumption (W) | 140/sqm | 140/sqm | 140/sqm | 140/sqm |
| Max. Power Consumption (W) | 420/sqm | 420/sqm | 420/sqm | 420/sqm |
| Storage Temperature (℃) | ﹣40~﹢60 | ﹣40~﹢60 | ﹣40~﹢60 | ﹣40~﹢60 |
| Operating Temperature (℃) | ﹣20~﹢60 | ﹣20~﹢60 | ﹣20~﹢60 | ﹣20~﹢60 |
| IP Rating (Front/Rear) | IP40/IP21 | IP40/IP21 | IP40/IP21 | IP40/IP21 |
| 10LED Lifetime (H)0000 | 100000 | 100000 | 100000 | 100000 |
| Module Maintenance | Front | Front | Front | Front |
| PSU & Others Maintenance | Front | Front | Front | Front |
| Certificate | CE FCC ETL RoHS | CE FCC ETL RoHS | CE FCC ETL RoHS | CE FCC ETL RoHS |
